Load capacity★★★☆☆
Wear performance★★★★★
Speed performance★★★★★
Shipping distance★★★★★
Pattern of Tyre HD968 Zigzag Pattern
◆ The pattern block of HD968 is designed in combination with the zigzag groove, which gives more effective consideration to the driving performance and stability of the tire, and has excellent handling safety performance on both dry and wet roads.

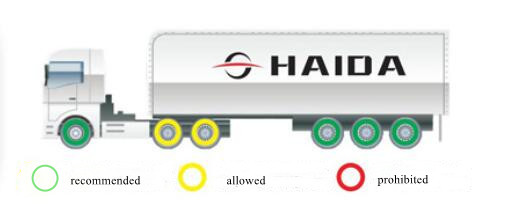

◆ The tiny steel sheet of Tyre HD968 is more conducive to tire heat dissipation and applicability of different wheel positions.
Product Features of Tyre HD968 Zigzag Pattern
◆ Tyre HD968's unique tread formula and widened driving surface design provide excellent wear resistance and eccentric wear resistance.
◆ Tyre HD968 adopts low heat generation formula to ensure the durability of tires.
Main Sizes and Parameters of Tyre HD968 Zigzag Pattern
Specification
| level
| Load index | Speed Class | Standard Rim
| Inflated cross-section wide (mm)
| inflated outer diameter (mm)
| Design pattern depth (mm) |
8R22.5 | 14 | 130/128 | M | 6.00 | 203 | 935 | 13.5 |
9R22.5 | 14 | 136/134 | M | 6.75 | 229 | 974 | 14 |
10R22.5 | 16 | 144/142 | M | 7.50 | 254 | 1019 | 15 |
11R22.5 | 16 | 146/143 | M | 8.25 | 279 | 1054 | 14.5 |
12R22.5 | 16 | 152/149 | M | 9.00 | 300 | 1085 | 16.5 |
29580R22.5 | 18 | 152/149 | M | 9.00 | 298 | 1044 | 15 |
31580R22.5 | 18 | 154/151 | M | 9.00 | 312 | 1076 | 16.5 |
Which Tire Pattern Is Better, Symmetrical or Asymmetrical?
When we buy vehicles, the comparison of various parts of the vehicle is also an important purchasing standard, including the tires of the vehicle. For the purchasing standard of tires, there is an inconspicuous place that also plays a greater role, that is, the tire pattern. So today, let's talk about the symmetry and asymmetry of the tire pattern.
First of all, we can say that the symmetrical pattern and asymmetrical pattern of tires are not better, but each has its own advantages and disadvantages, which is also to better adapt to the vehicle.
Next, let's talk about their advantages and disadvantages. Asymmetrical tires have good movement performance, and their patterns are relatively fast, which makes the contact surface between the tire and the ground larger, and the grip also increases. Symmetrical tires are more fuel efficient, because they reduce the tire rolling resistance. However, they also have different disadvantages. The tires with asymmetric tread patterns have larger tread patterns and higher noise, while the tires with symmetric tread patterns have weaker movement ability.
Finally, they are also used on different vehicles. Asymmetrical tread tyres are mainly used on vehicles with sports performance, such as sports SUVs, while symmetrical tread tyres are generally economical family cars.
